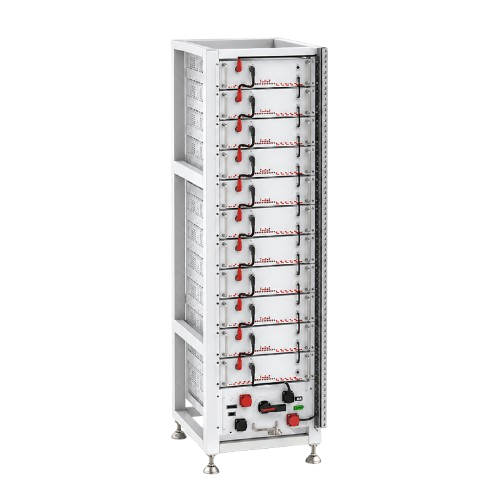

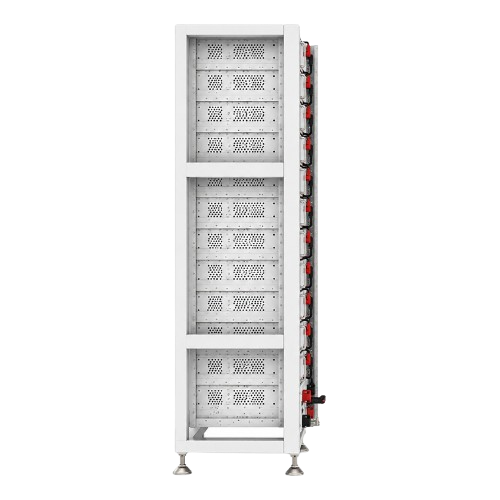

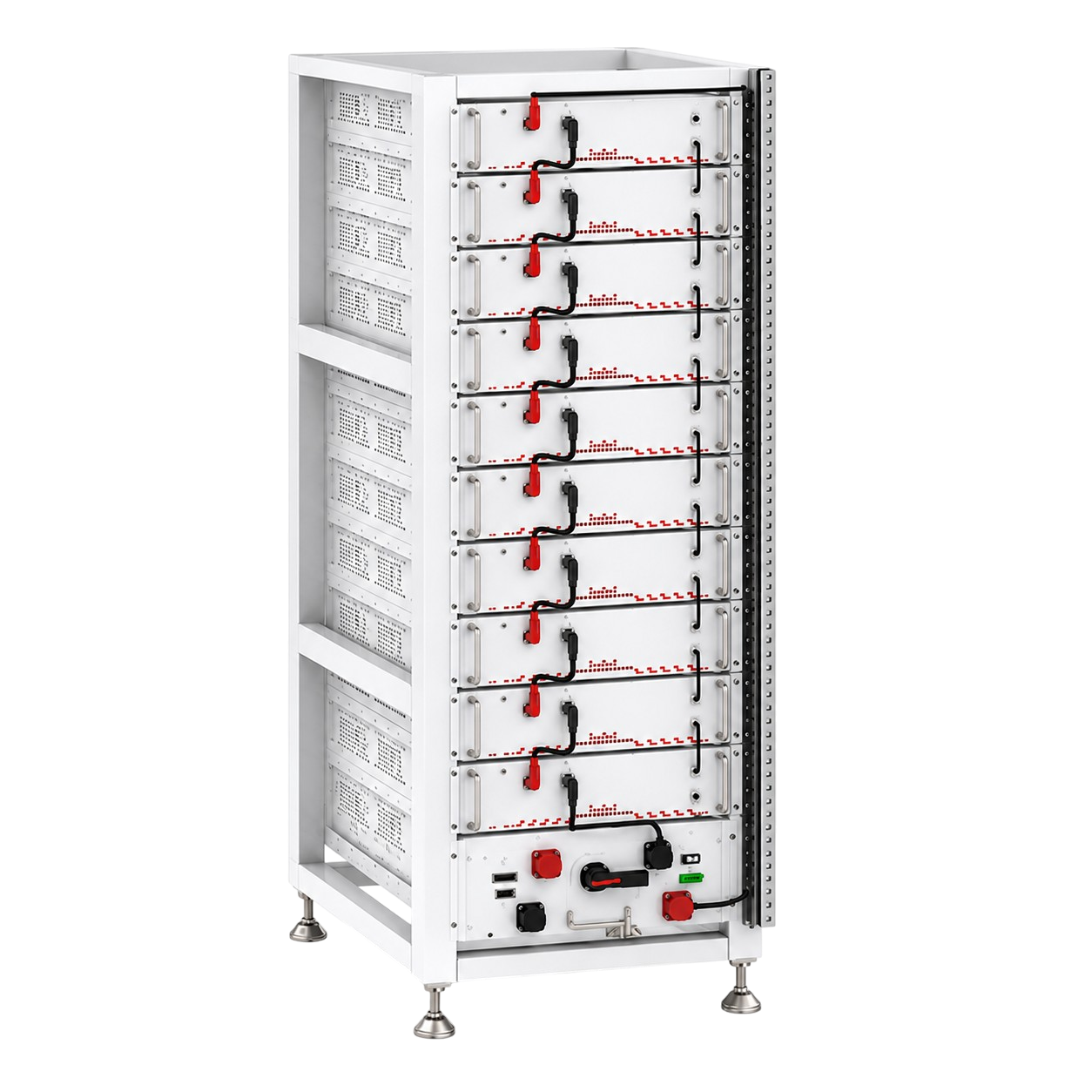

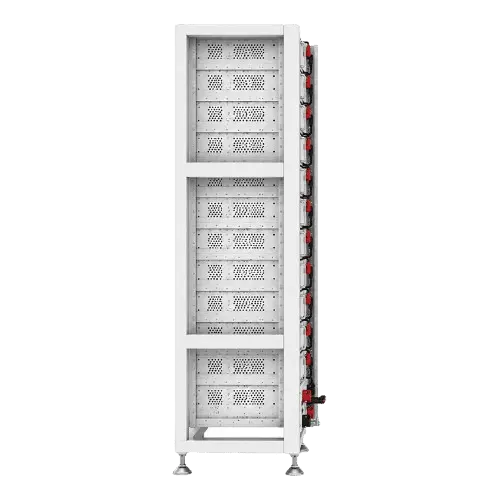

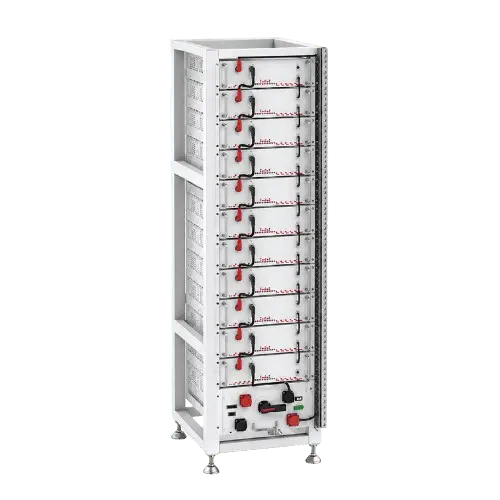

60kWh High Voltage Rack-mounted Energy Storage System consists of 12 battery packs, each of which consists of 16S-100Ah cells.These are connected in series to a 30KW three-phase hybrid inverter, enabling seamless integration with the grid and loads. The system supports solar energy generation, storage, and charging functions and operates efficiently in temperatures ranging from -20°C to 55°C, making it ideal for various residential, commercial and industrial energy storage applications.
| Battery Cabinet Size | 575mm (W) × 600mm (D) × 2150mm (H) | ±5mm |
| Nominal Capacity | 100Ah | – |
| Nominal Voltage | 614.4V | 192 Strings |
| Standard Charging Rate | 0.5C / 25℃ | – |
| Maximum Continuous Discharge Rate | 1C / 25℃ | – |
| Energy | 60kWh | – |
| Operating Voltage Range | 556.8V – 691.2V | – |
| Maximum Charging Voltage of Single Cell | 3.60V | Any Battery Cell |
| Minimum Discharge Voltage of Single Cell | 2.9V | Any Battery Cell |
| Operating Temperature Range | Charging: 0~55℃ Discharging: -20~55℃ |
– |
| Protection Level | IP20 | – |
| Battery Pack Size | 482.6mm (W) × 550mm (D) × 133mm (H) | ±0.5mm |
| Nominal Capacity | 100Ah | – |
| Nominal Voltage | 51.2V | 16 Strings |
| Standard Charging Rate | 0.5C / 25℃ | – |
| Maximum Continuous Discharge Rate | 1C / 25℃ | – |
| Energy | 5.12kWh | – |
| Operating Voltage Range | 46.4V – 57.6V | – |
| Maximum Charging Voltage of Single Cell | 3.60V | Any Battery Cell |
| Minimum Discharge Voltage of Single Cell | 2.9V | Any Battery Cell |
| Insulation Properties | ≥1000Ω/V | – |
| Certification | Available upon request | – |
