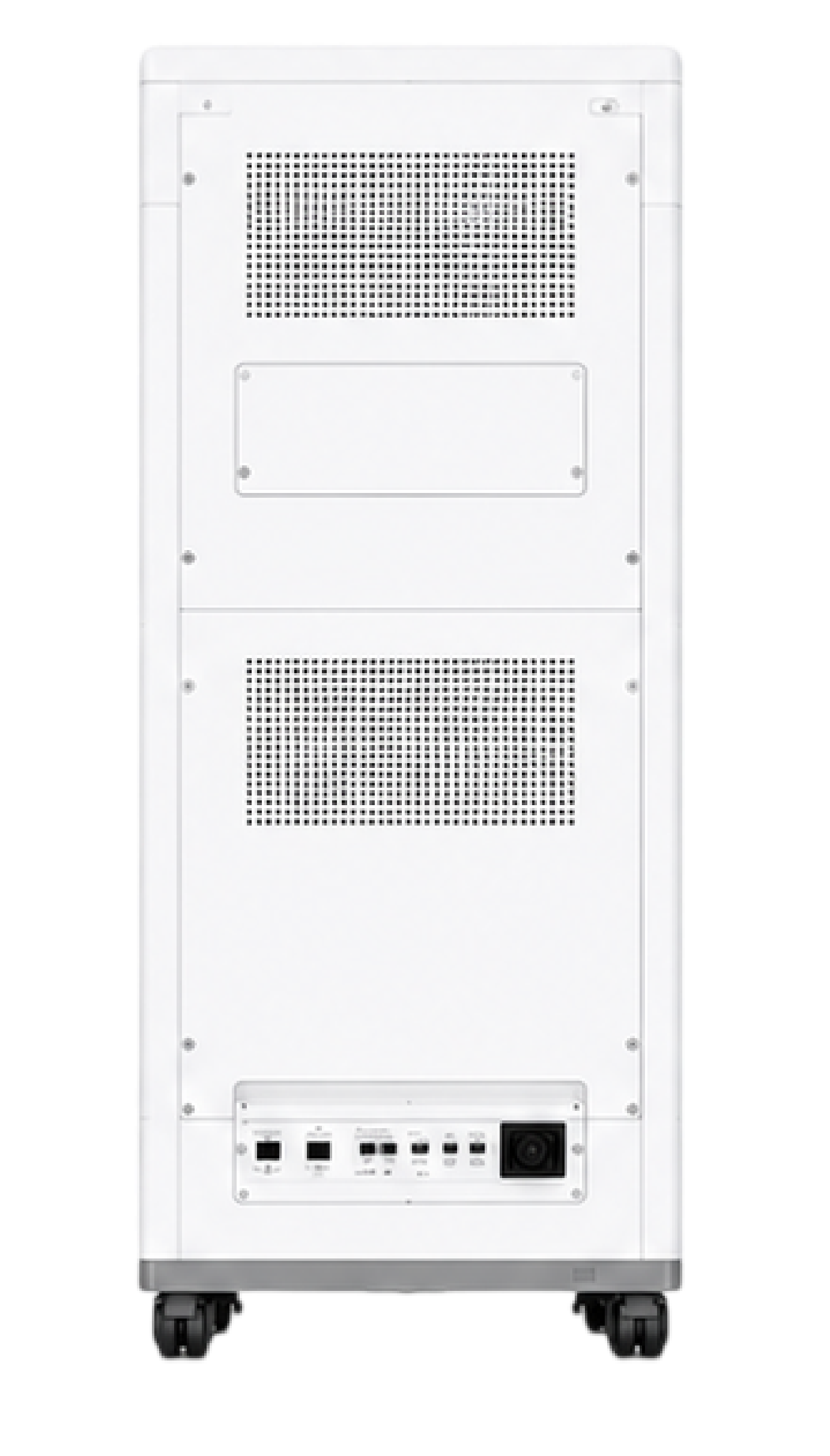

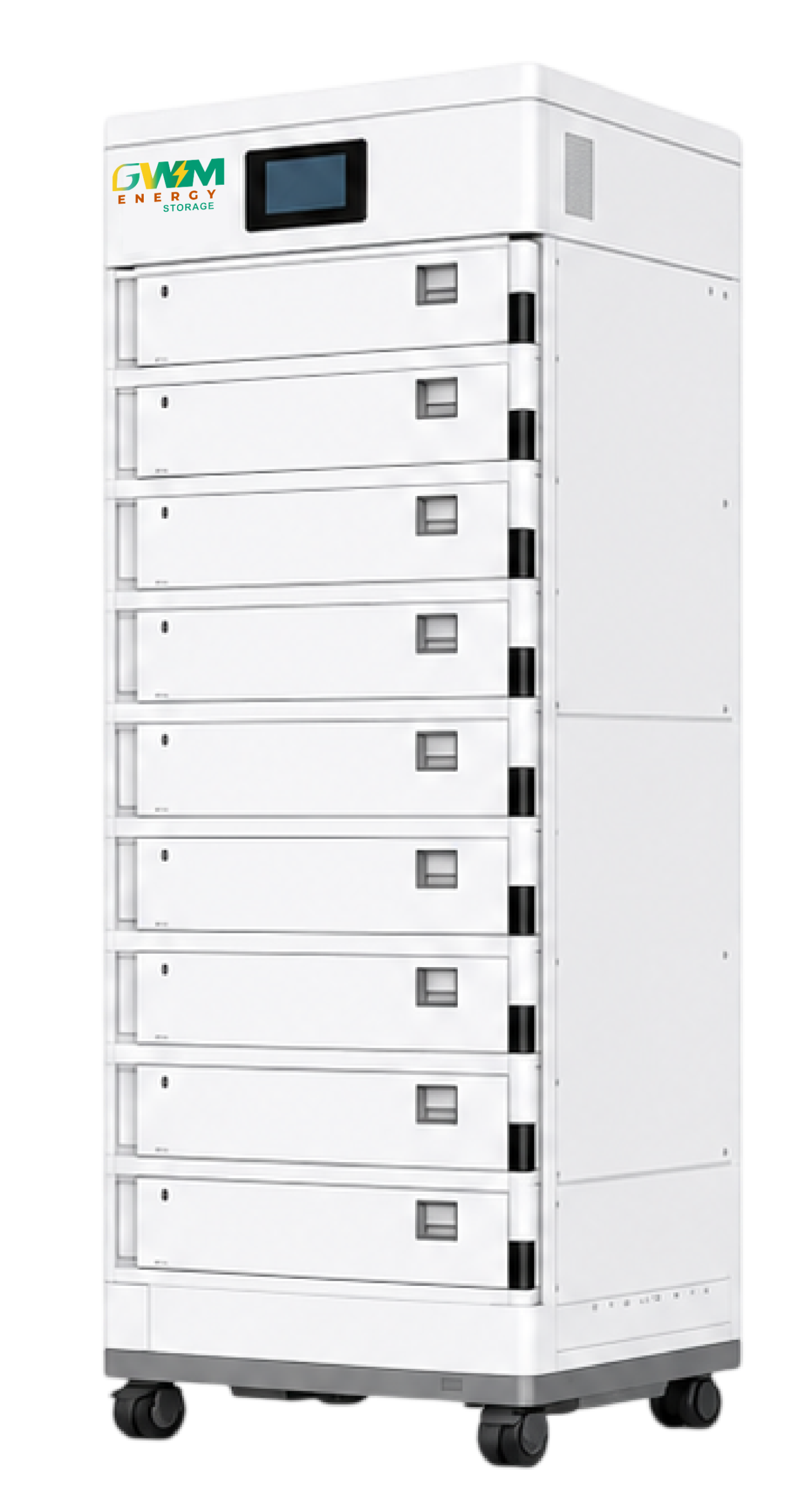

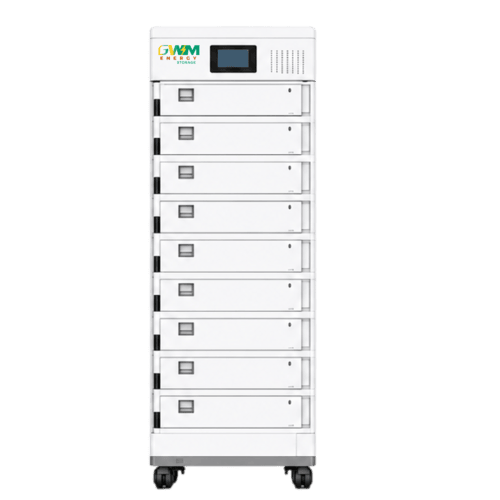

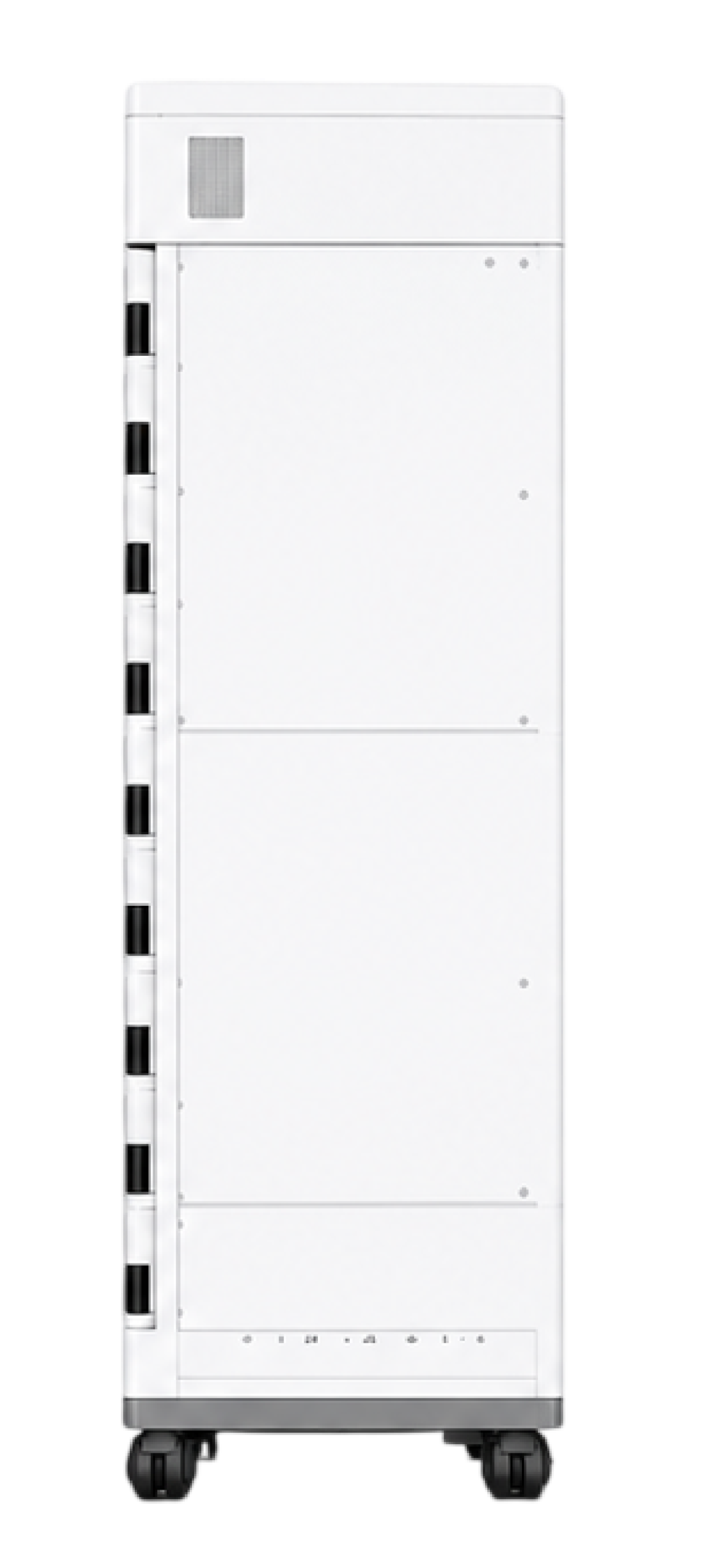

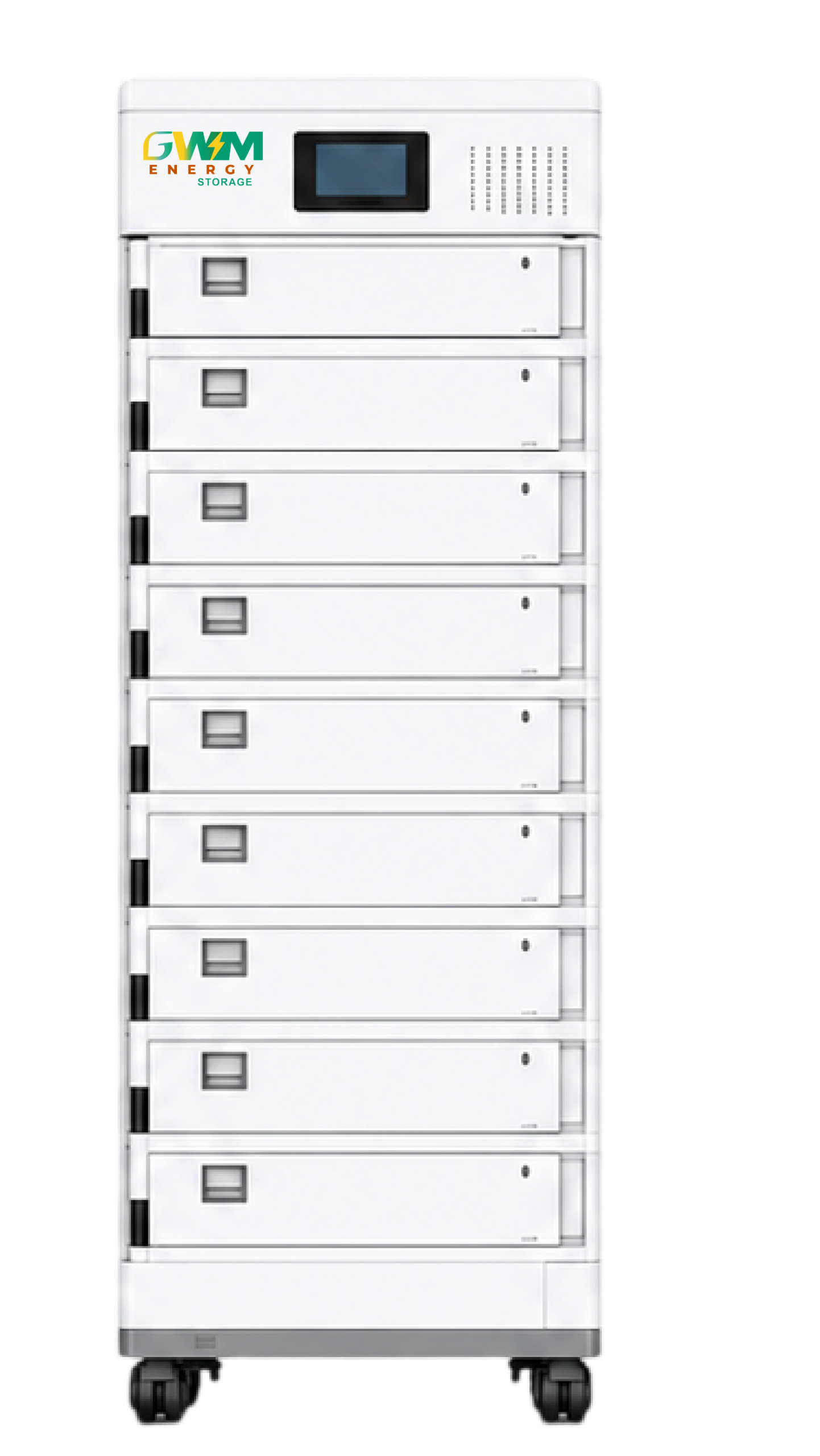

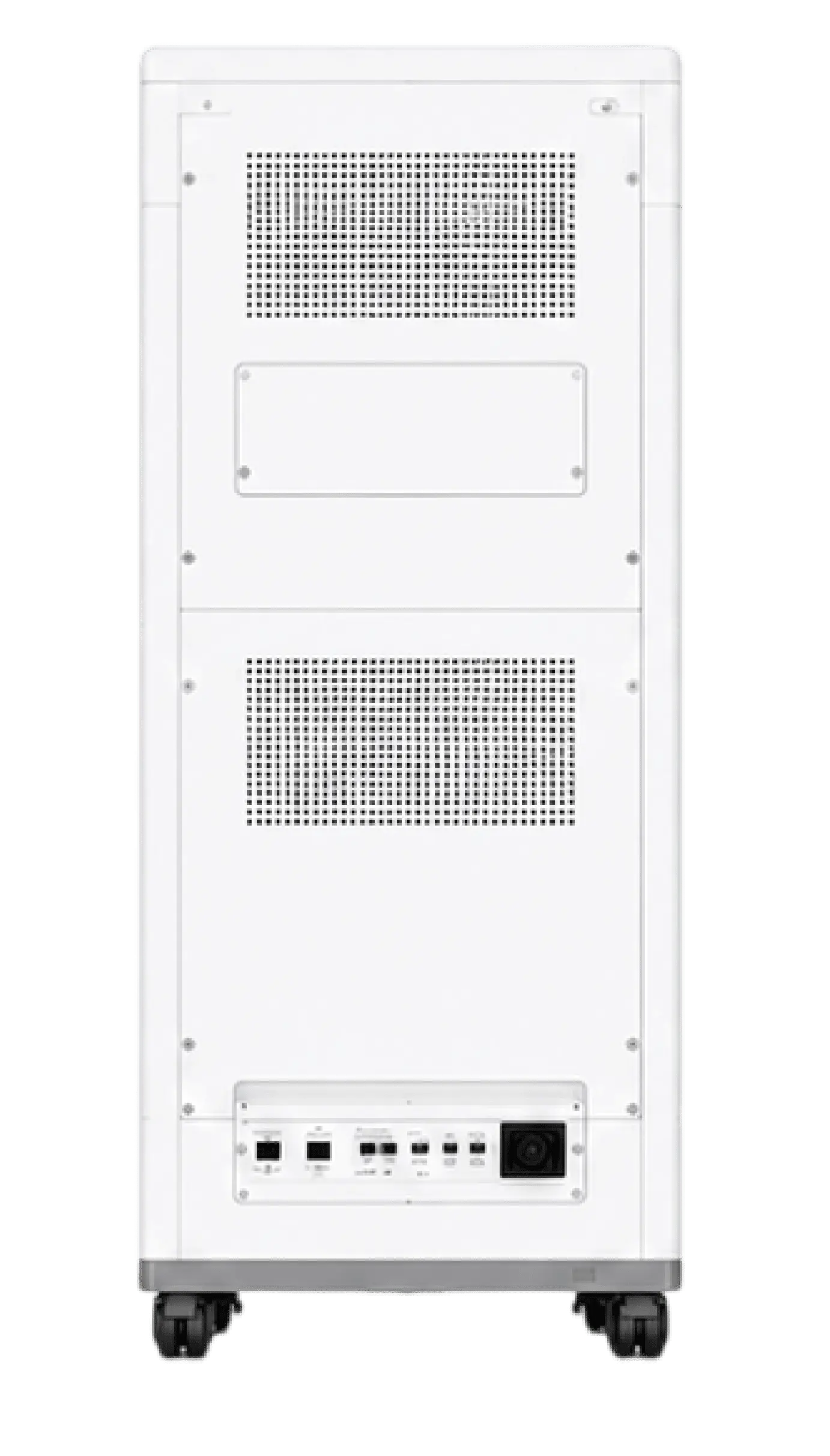

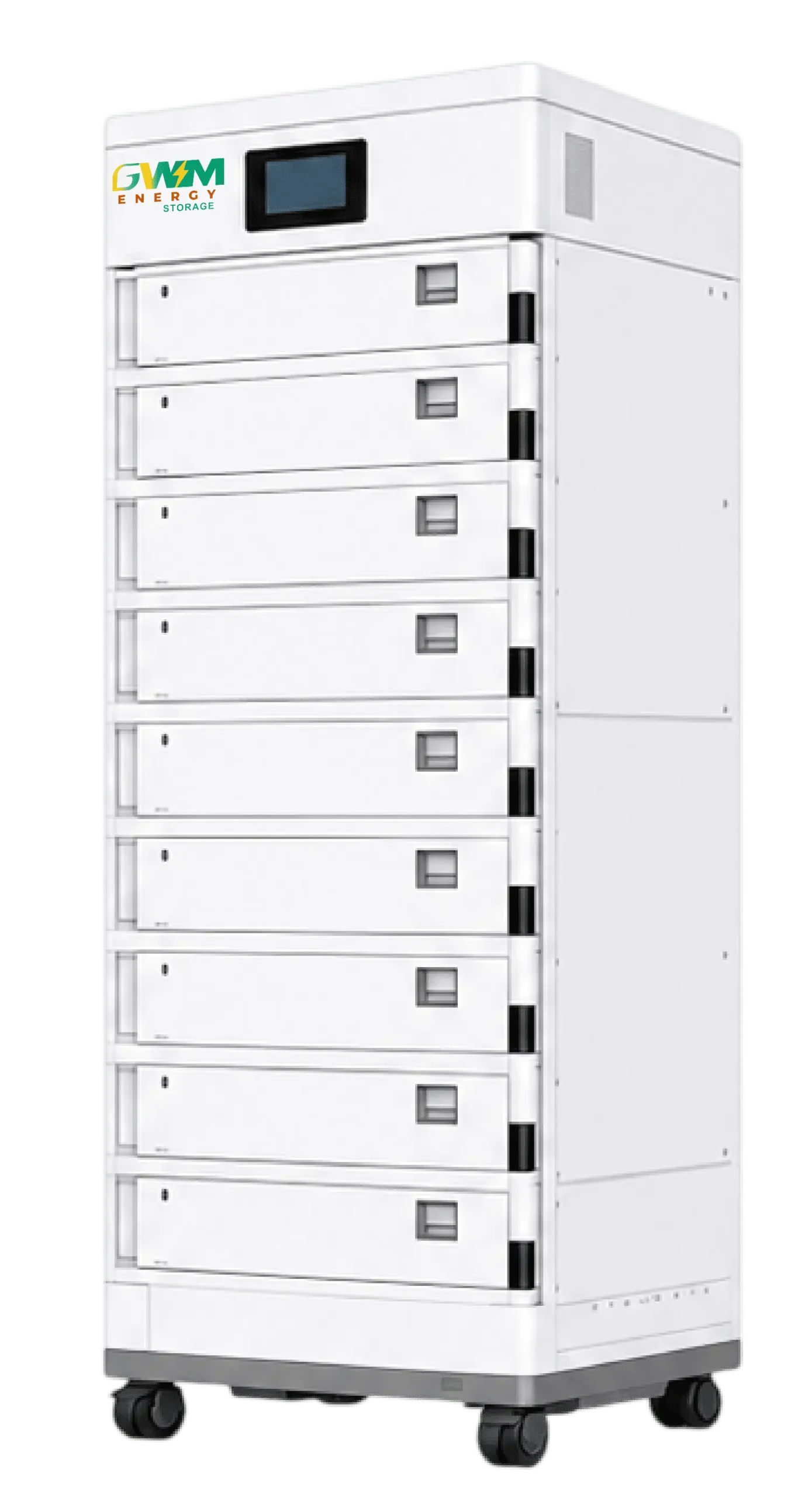

Atom series of High-voltage stacking products using 5.12kWh lithium iron phosphate battery module, supporting 15.36~40.96 capacity free choice and its high flexibility of choice space makes it easier to meet the needs of users in more scenarios of electricity. Also,it equips with wifi module, APP monitoring and remote upgrade function.
| Specification | 3-Modules | 4-Modules | 5-Modules | 6-Modules | 7-Modules | 8-Modules |
| Model | ATOM HS-15.36 | ATOM HS-20.48 | ATOM HS-25.6 | ATOM HS-30.72 | ATOM HS-35.84 | ATOM HS-40.96 |
| Battery Type | LiFePO4 | |||||
| Nominal Voltage | 153.6V | 204.8V | 256.0V | 307.2V | 358.4V | 409.6V |
| Nominal Capacity | 15.36kWh | 20.48kWh | 25.6kWh | 30.72kWh | 35.84kWh | 40.96kWh |
| Max Charge & Discharge Current | 100A | |||||
| Max Charge & Discharge Power | 15.36kW | 20.48kW | 25.6kW | 30.72kW | 35.84kW | 40.96kW |
| Communication | CAN / RS485 / WiFi | |||||
| Weight | 182Kg | 232Kg | 282Kg | 332Kg | 382Kg | 432Kg |
| Dimensions (L×W) | 590 × 405mm | |||||
| Dimensions (Height) | 675mm | 835mm | 995mm | 1155mm | 1315mm | 1475mm |
| Working Temperature Range | Charge: 0~45°C, Discharge: -20~55°C | |||||
| Efficiency | ≥97% | |||||
| Cycle Life | 6000 Cycles | |||||
| Designed Lifespan | ≥10 Years | |||||
| Shell Protection Grade | IP65 | |||||
| Anti-Corrosion Grade | C3+ Class Anti-Corrosion | |||||
| Auxiliary Heating Function | Optional | |||||
| Parallel Connection | Suggest ≤4 Clusters | |||||
| Installation | Floor Standing | |||||
| Compatible Inverter | Afore, Growatt, Solis, DEYE, Pylon, Megarevo, INVT & Customization | |||||
| Certification | CB-IEC62619, CE, UN38.3 | |||||
