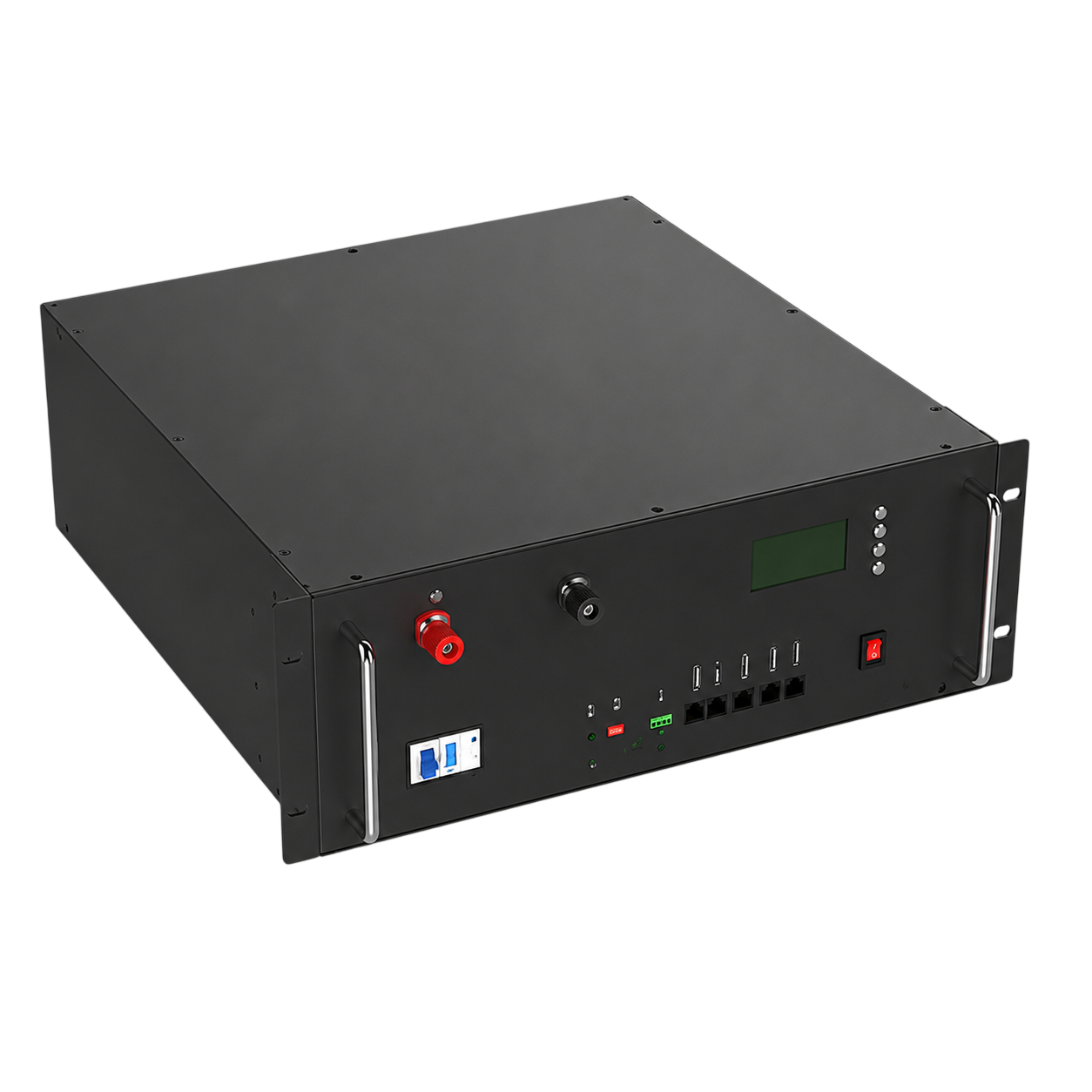

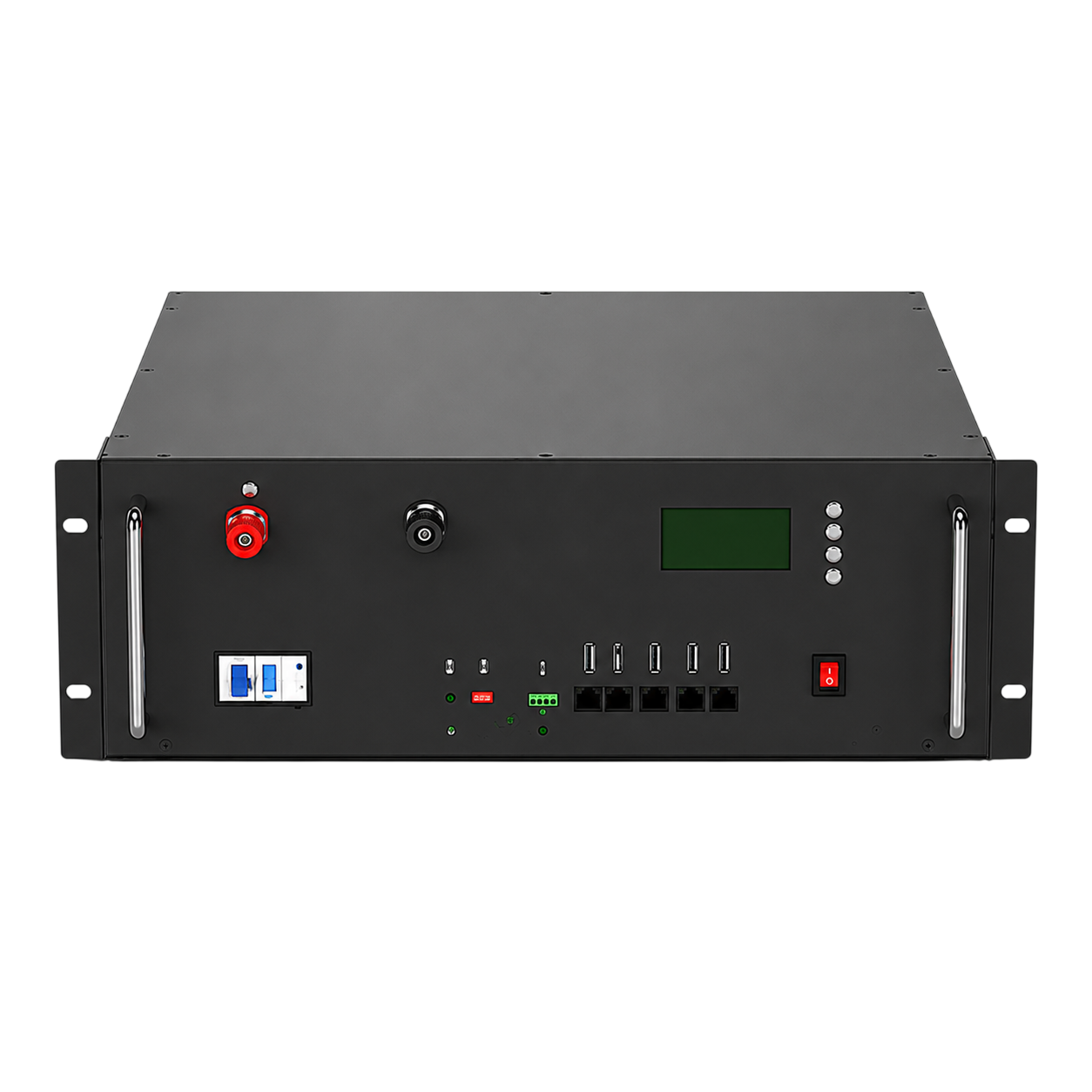

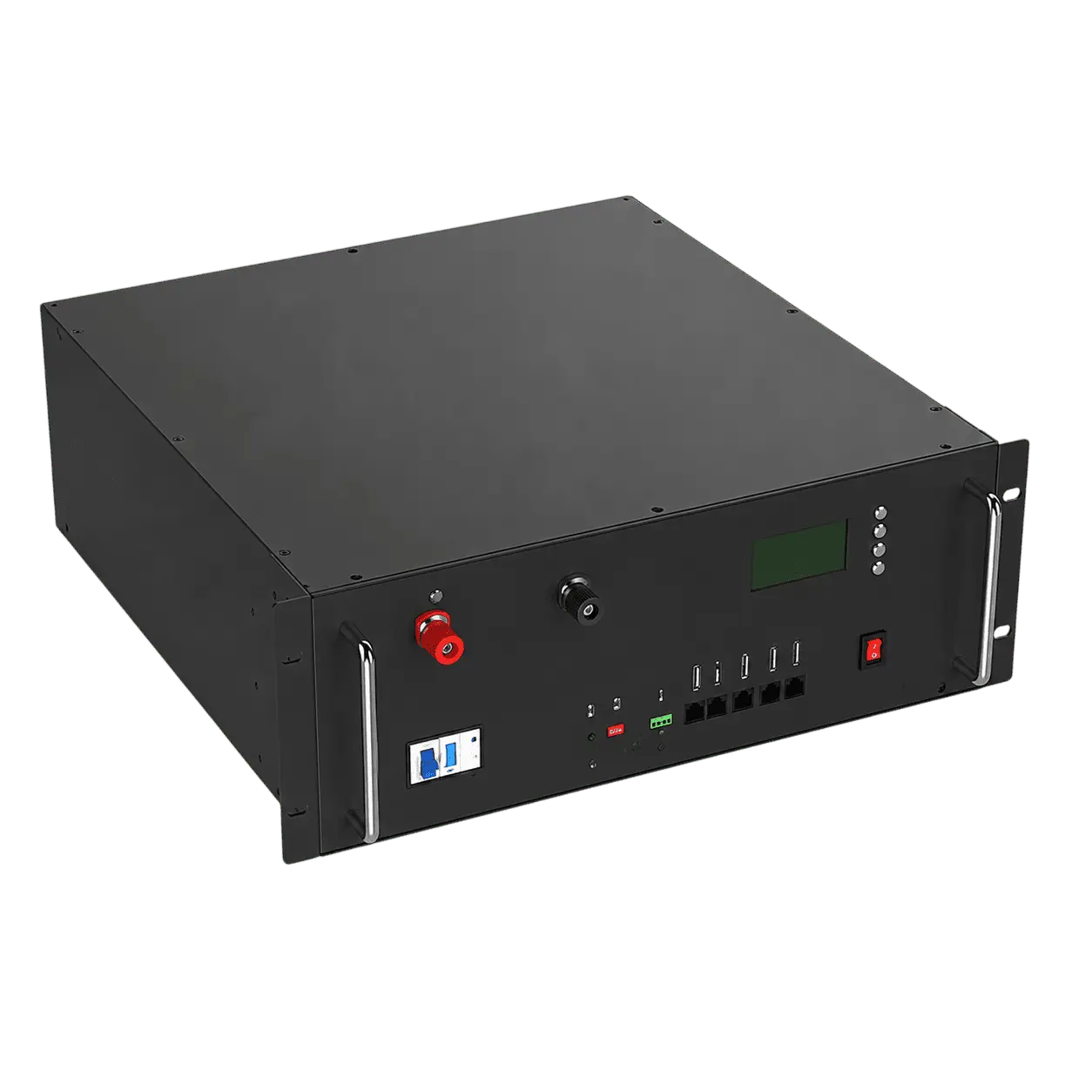

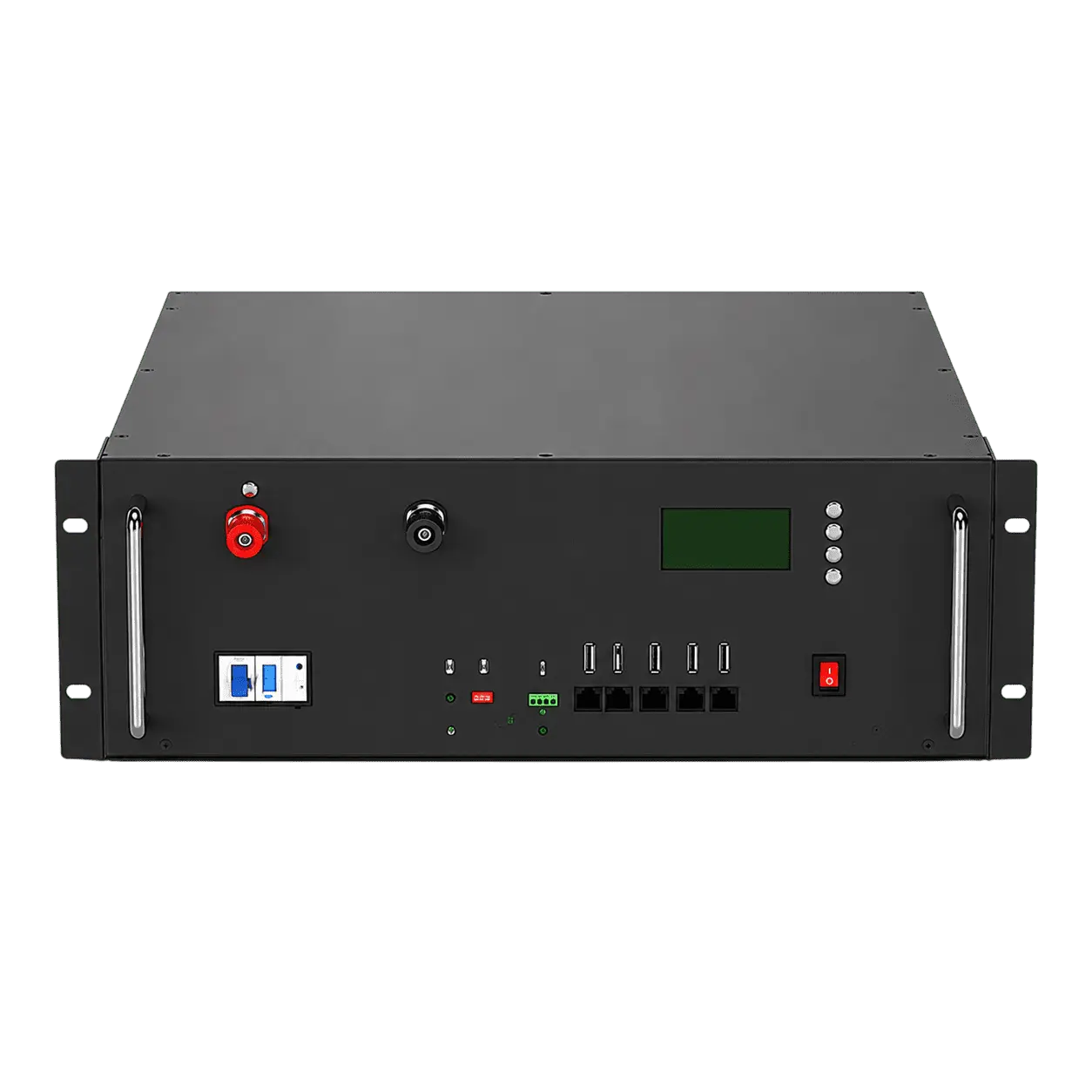

48V/51.2V rack-mounted lithium iron phosphate battery, with high energy density, stylish appearance, easy installation and expansion, is widely used in telecommunication base stations, commercial energy storage, UPS, and residential energy storage systems.
| Specification | HL-LR48100 | HL-LR48200 |
| Nominal Voltage (V) | 48 / 51.2V | 48 / 51.2V |
| Nominal Capacity (Ah) | 100Ah | 200Ah |
| Energy (Wh) | 4800 / 5120Wh | 9600 / 10240Wh |
| Dimension (mm) | L460 × W442 × H177 | L680 × W442 × H185 |
| Weight (Kg) | 45 / 47Kg | 88 / 92Kg |
| Discharge Cut-off Voltage (V) | 40.5V (15S) / 43.2V (16S) | 40.5V (15S) / 43.2V (16S) |
| Charge Cut-off Voltage (V) | 54.7V (15S) / 58.4V (16S) | 54.7V (15S) / 58.4V (16S) |
| Communication Port | RS485 / RS232 / CAN | RS485 / RS232 / CAN |
| Cell Serial Number (pcs) | 15S / 16S | 15S / 16S |
| Working Temperature | -10°C ~ 60°C | -10°C ~ 60°C |
| Design Life | 10+ Years (25°C / 77°F) | 10+ Years (25°C / 77°F) |
| Cycle Life | >6000 Cycles, 25°C / 77°F, 80% DOD | >6000 Cycles, 25°C / 77°F, 80% DOD |
| Certification | CE / UN38.3 | CE / UN38.3 |
| Maximum Continuous Charge Current | 100A | 100A |
| Maximum Continuous Discharge Current | 100A | 100A |
