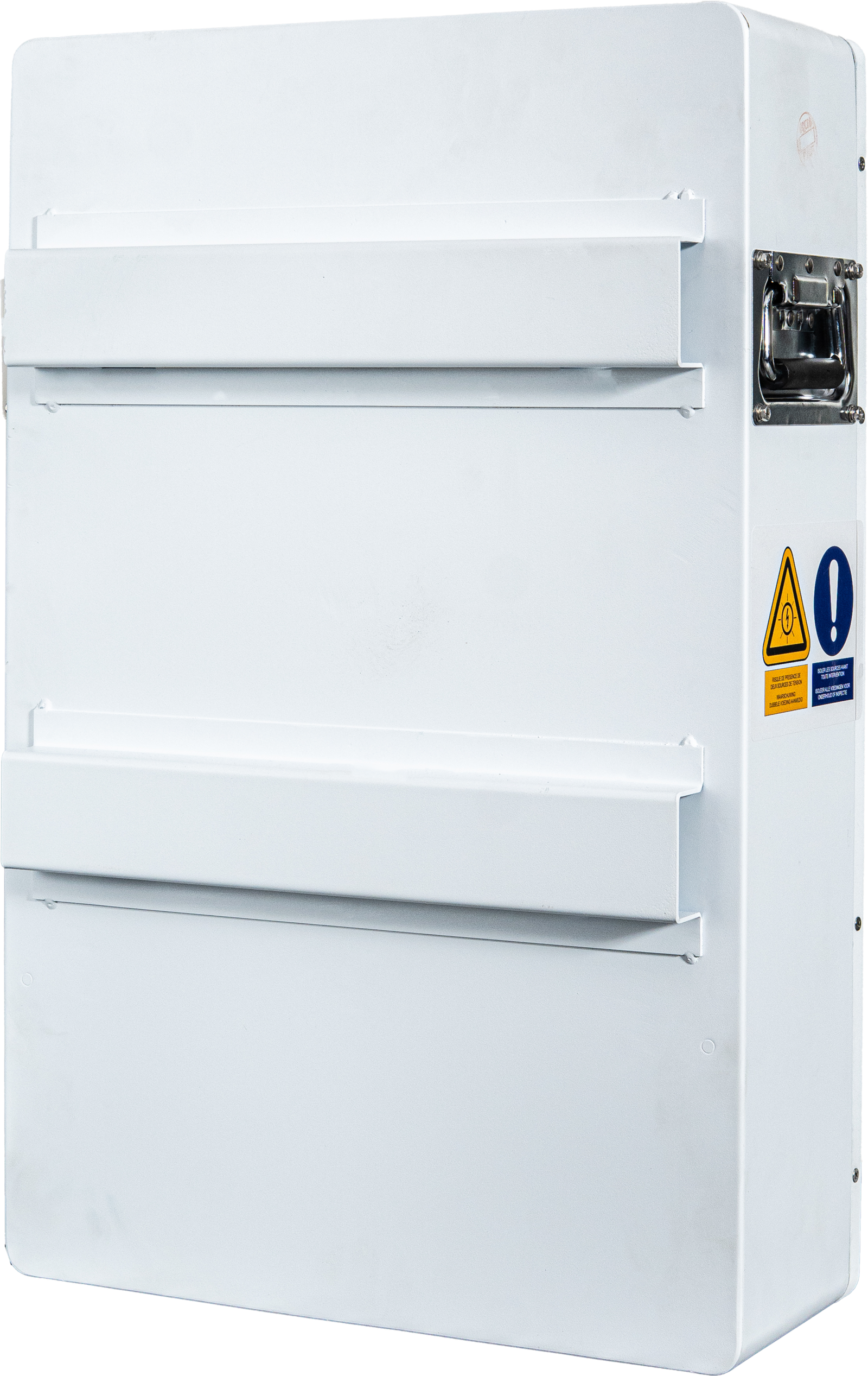

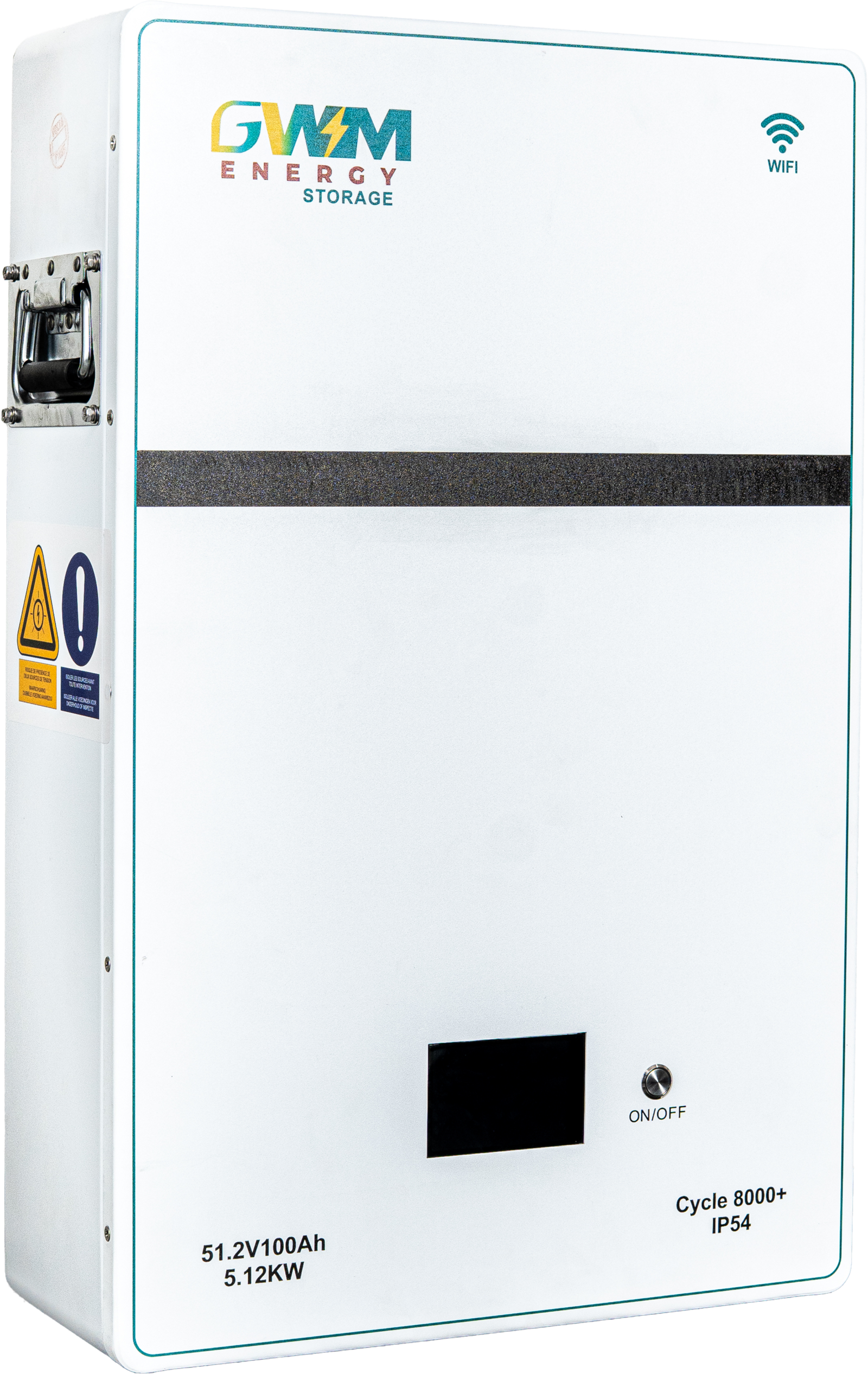

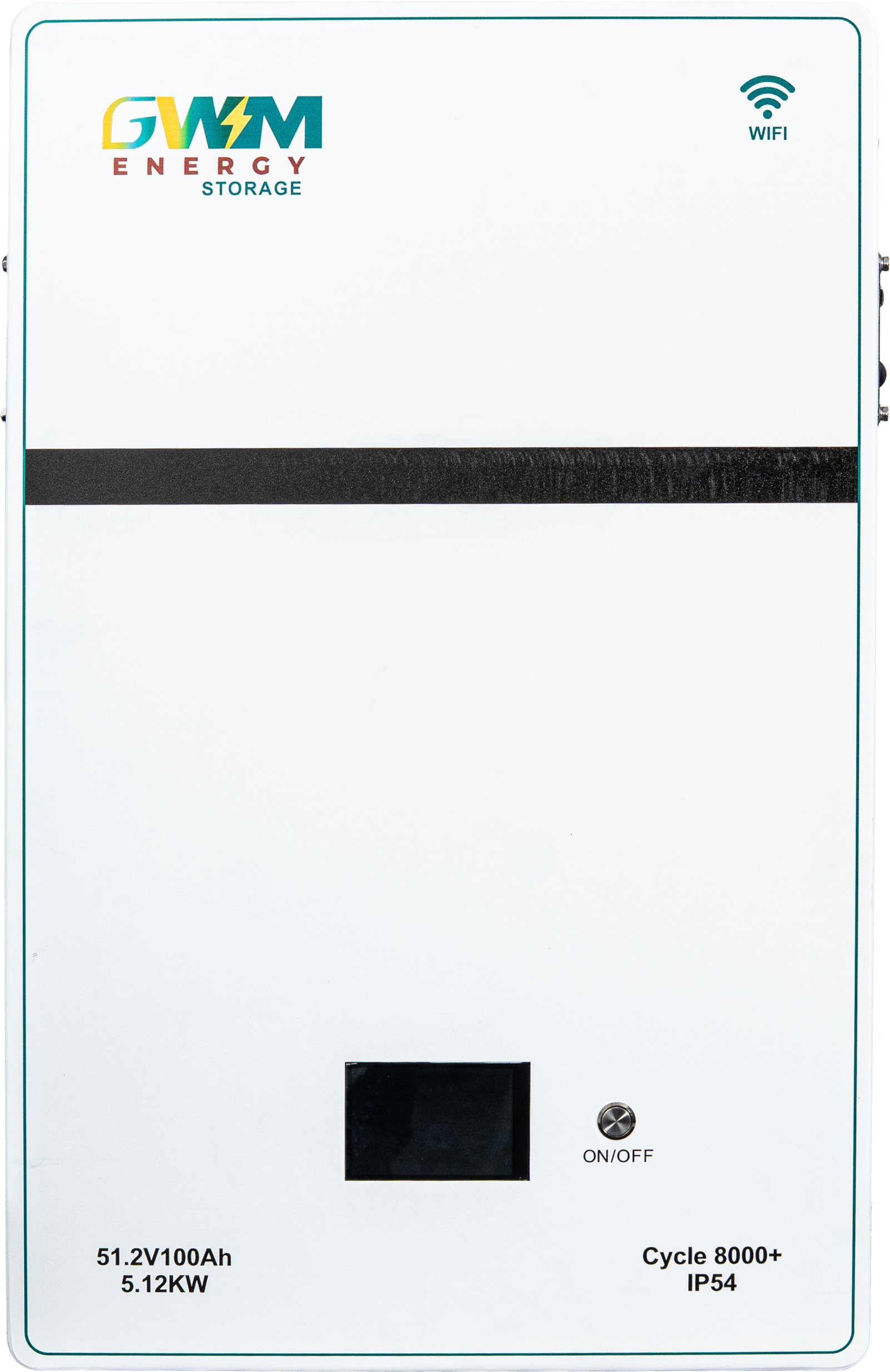

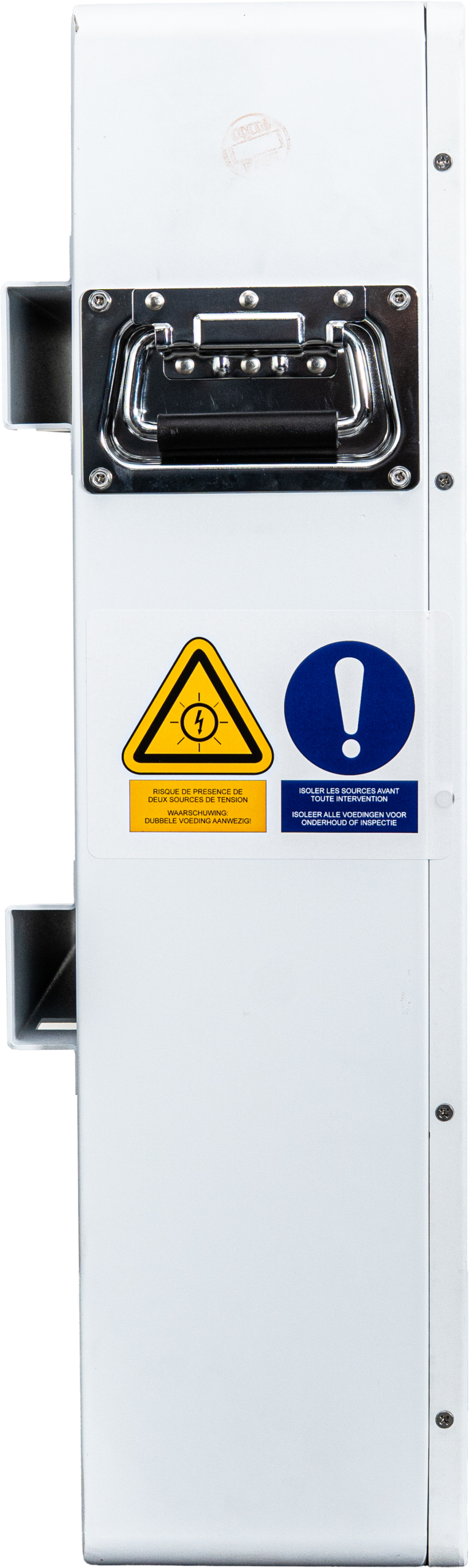

GWM LBP-W1100P1 is a high-performance 51.2V 100Ah (5.12 kWh) LiFePO₄ lithium battery designed to provide reliable and efficient energy storage for homes and small businesses. Built with advanced lithium iron phosphate (LiFePO₄) technology, it delivers safe, stable, and long-lasting power for daily energy consumption, solar energy storage, and backup power applications. The system supports parallel expansion of up to 10 battery units, allowing you to easily scale your energy storage capacity as your needs grow. Equipped with an intelligent Battery Management System (BMS), it provides comprehensive protection against overcharging, over-discharging, overheating, and short circuits for enhanced safety and reliability. With an impressive 8,000+ life cycles and a 7-year replacement warranty, the GWM LBP-W1100P1 offers exceptional durability, high efficiency, and dependable performance you can trust for years to come.
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 ~ 57.6V |
| Maximum Discharge C Rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Maximum Charge/Discharge Current | Charge: 75A | Discharge: 100A |
| Peak Discharge Current | 110A @ 10 minutes |
| Depth of Discharge (DoD) | 95% |
| Net Weight | 50kg |
| Dimensions (W/D/H) | 630 × 400 × 155 mm |
| Operating Temperature Range | -20°C ~ 60°C |

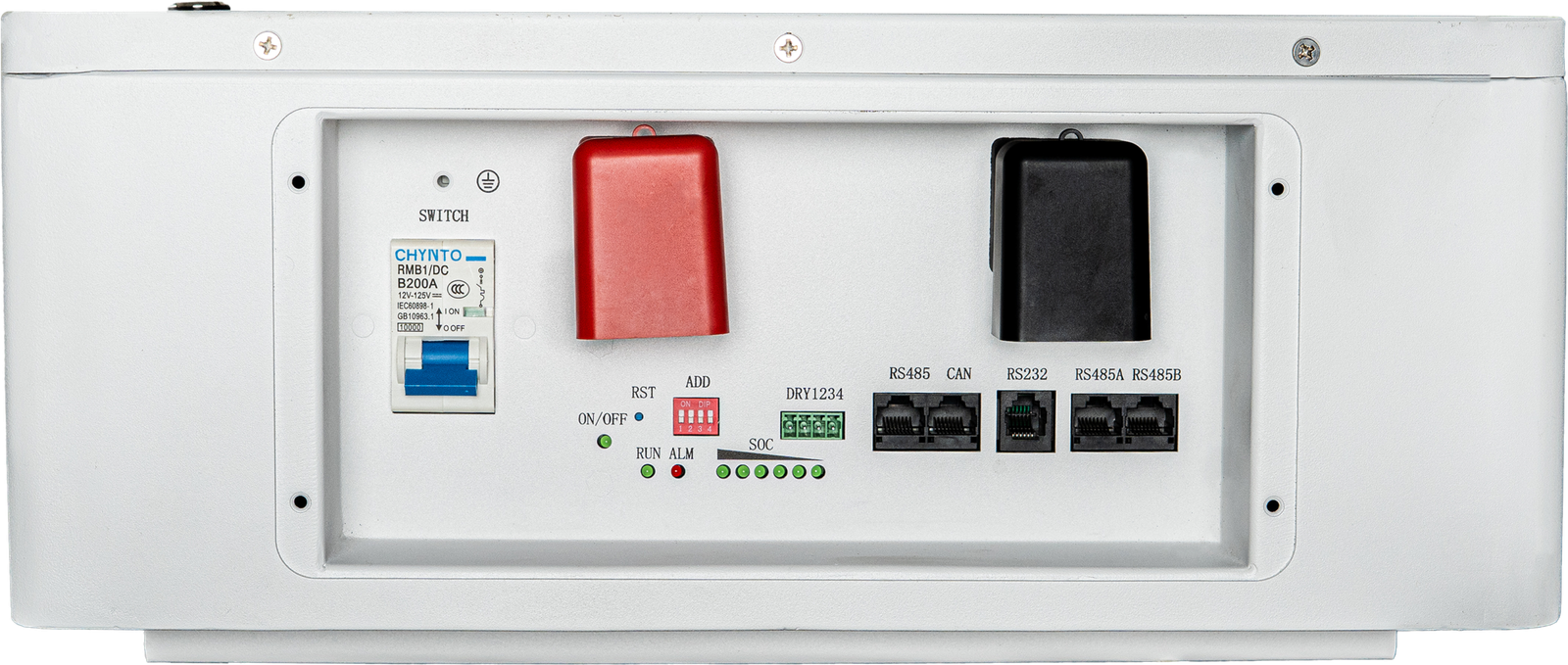

| Communication | RS232 / CAN / RS485 |

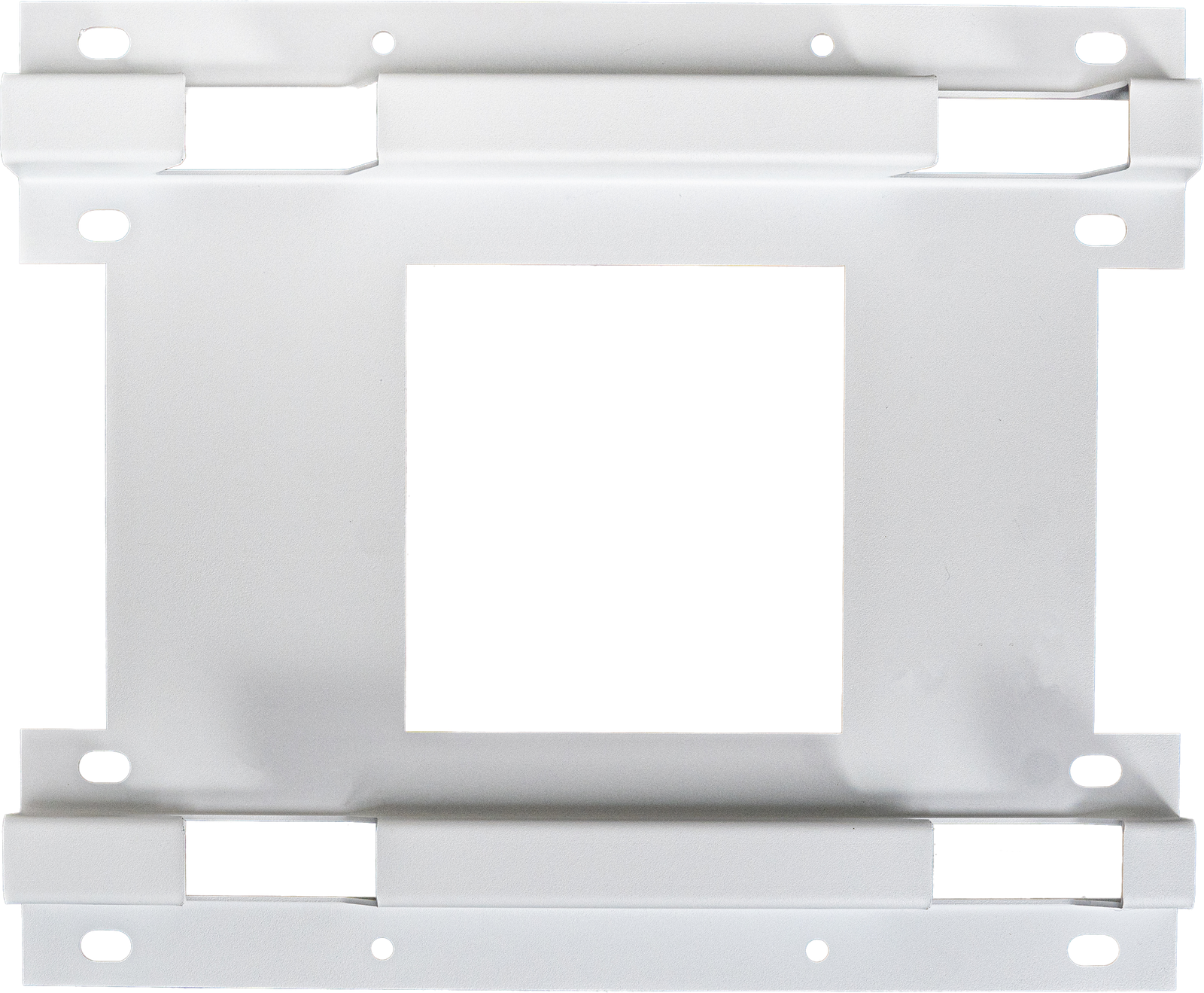

| Design | Wall Mounted |
| Wi-Fi Module | External Wi-Fi Port |
| Cycle Life | 8000+ Cycles |
| Protection Level | IP54 |
| Expansion | Supports up to 10 units in parallel |
| Pros | Suitable for both off-grid and hybrid setups with compact design |
| Certification | UN38.3 / CE / MSDS |
| Compatible Inverters | Compatible with all branded inverters IP21-IP66 |
