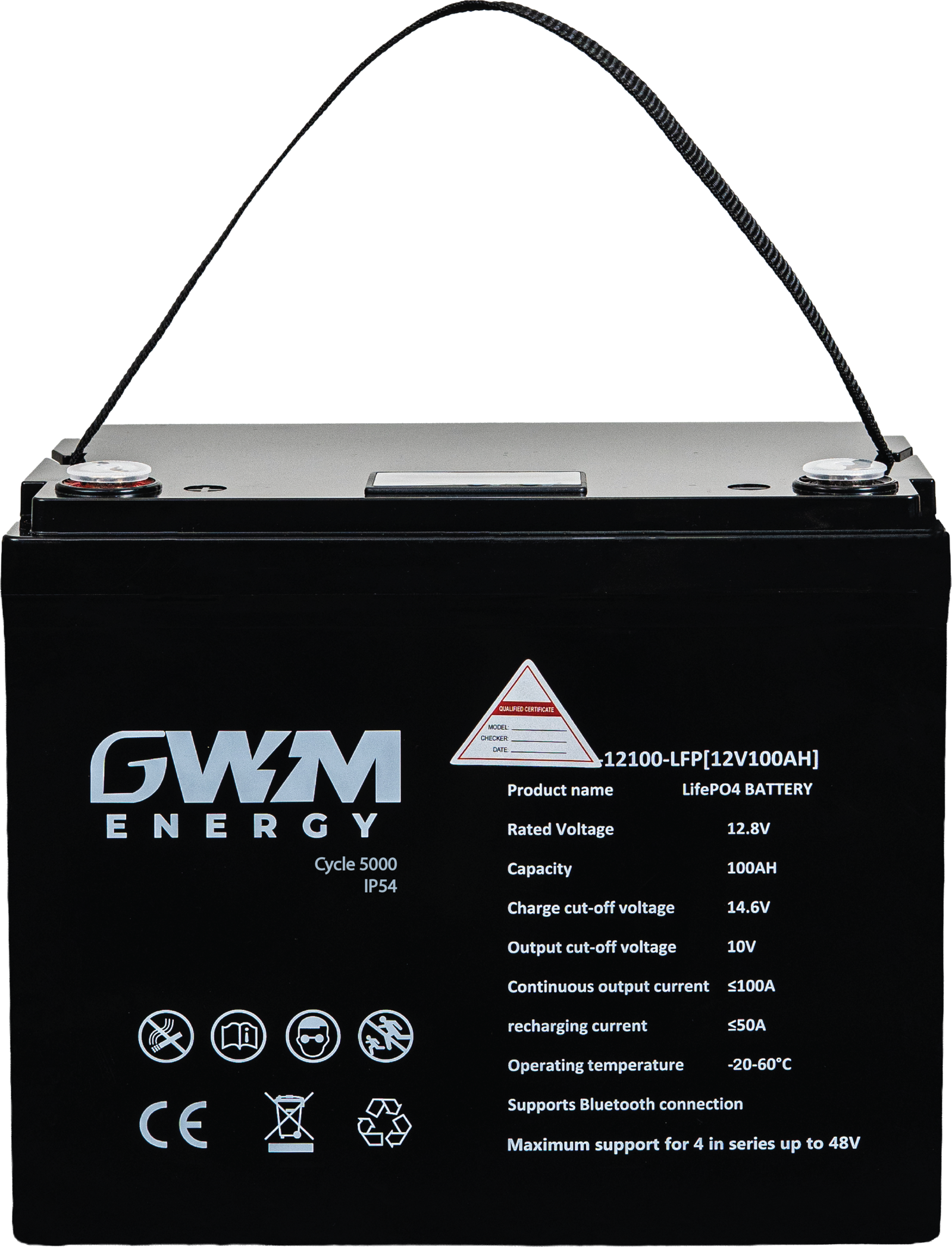

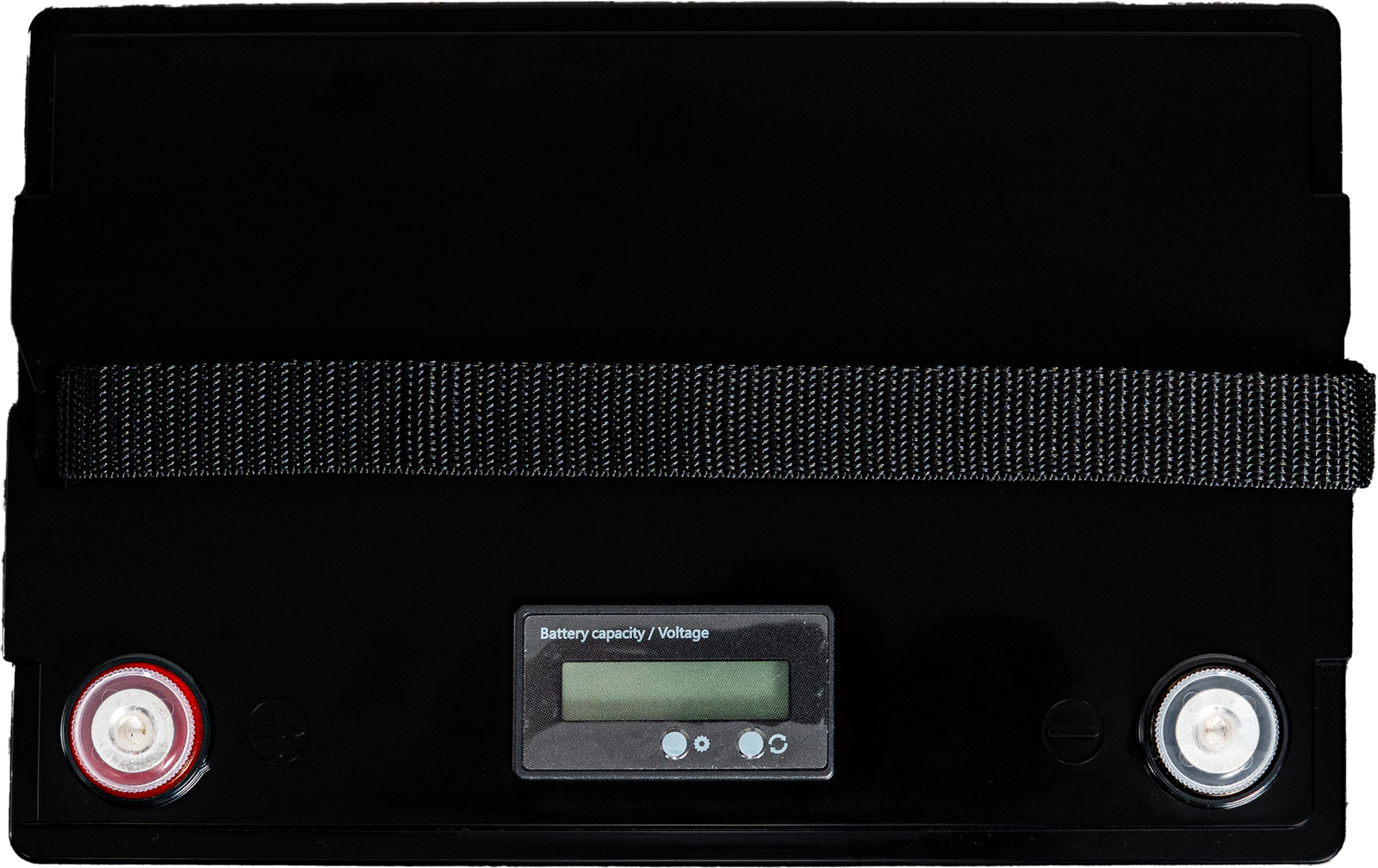

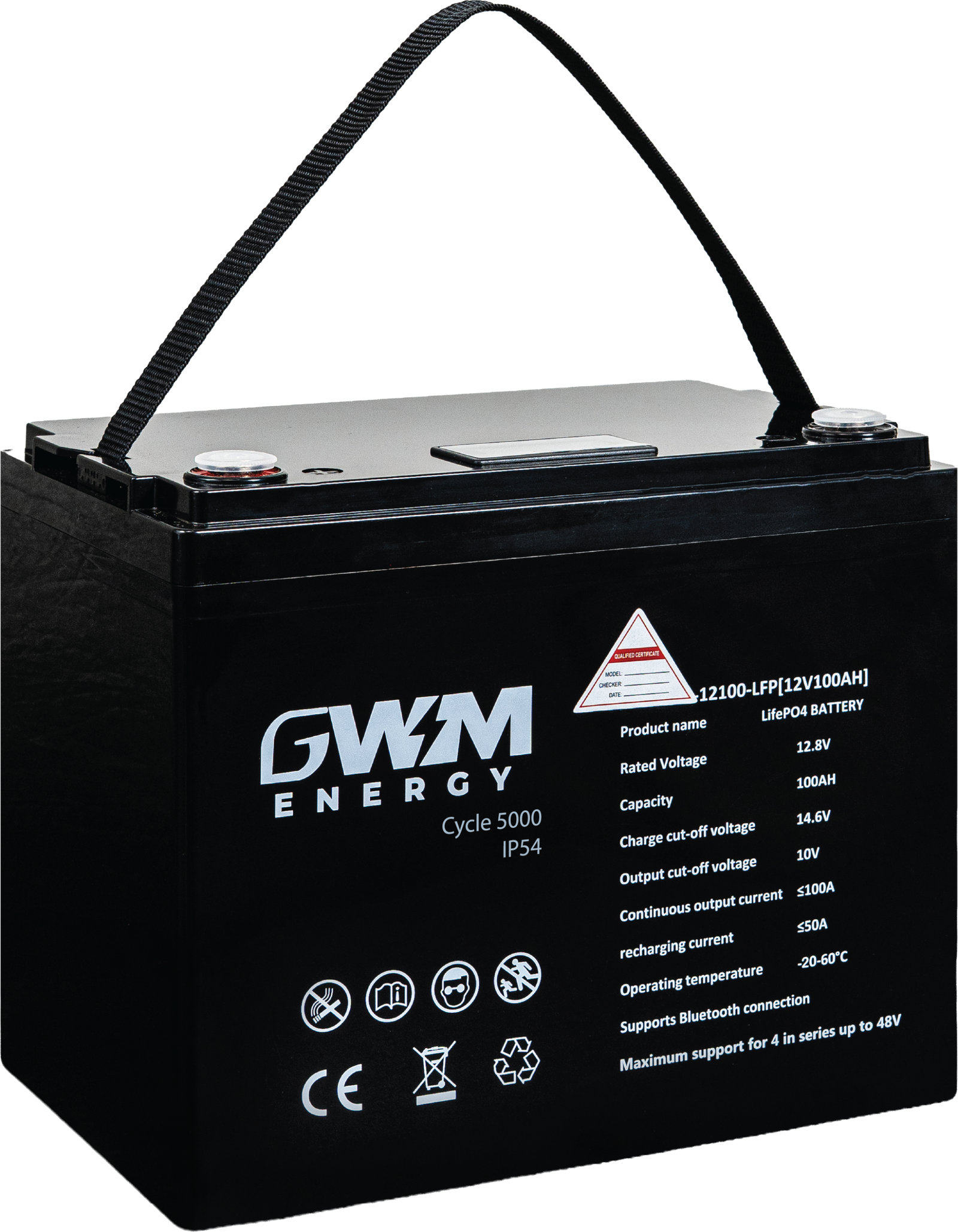

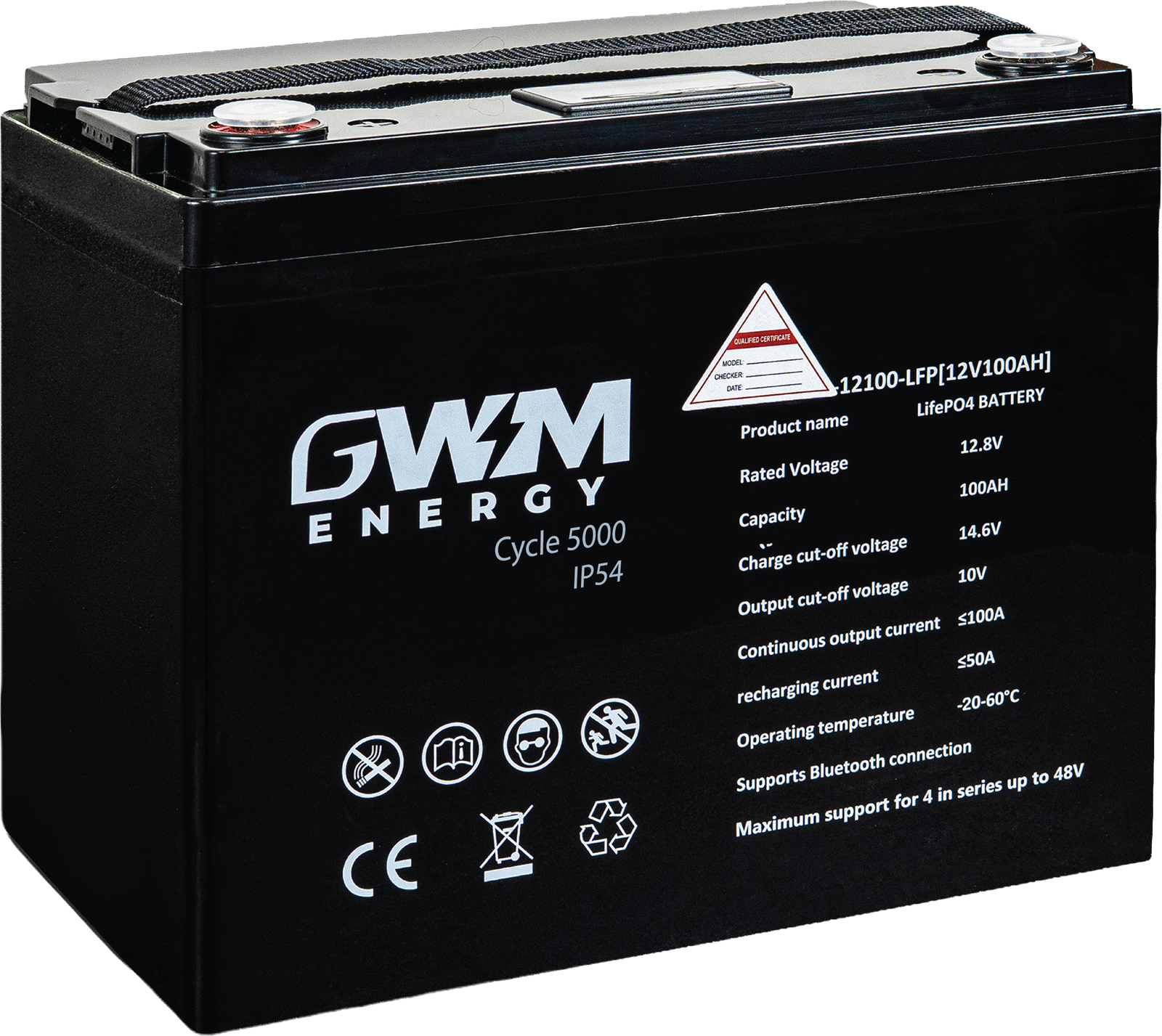

GWM LBP-W600P1 is a high-performance 12.8V 100Ah (1.28kWh) LiFePO₄ lithium battery designed to provide reliable and efficient energy storage for homes and small businesses. Built with advanced lithium iron phosphate (LiFePO₄) technology, it delivers safe, stable, and long-lasting power for daily energy consumption, solar energy storage, and backup power applications. The system supports parallel expansion of up to 4 battery units, allowing you to easily scale your energy storage capacity as your needs grow. Equipped with an intelligent Battery Management System (BMS), it provides comprehensive protection against overcharging, over-discharging, overheating, and short circuits for enhanced safety and reliability. With an impressive 5,000+ life cycles and a 7-year replacement warranty, the GWM LBP-W600P1 offers exceptional durability, high efficiency, and dependable performance you can trust for years to come.
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Battery Energy | 1.28 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 12.8V |
| Operating Voltage | 44.8 ~ 57.6V |
| Maximum Discharge C Rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max. Charge/Discharge Current | Charge: 75A | Discharge: 100A |
| Peak Discharge Current | 110A @ 10 minutes |
| Depth of Discharge (DoD) | 95% |
| Net Weight | 50kg |
| Dimension (W/D/H) | 630 × 400 × 155 mm |
| Operating Temperature Range | -20°C ~ 60°C |
| Communication | RS232 / CAN / RS485 |
| Wi-Fi Module | External Wi-Fi Port |
| Cycle Life | 5000+ Cycles |
| Protection Level | IP54 |
| Expansion | Supports up to 4 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups with a compact design |
| Certification | UN38.3 / CE / MSDS |
| Compatible Inverters | Compatible with all branded inverters IP21-IP66 |
