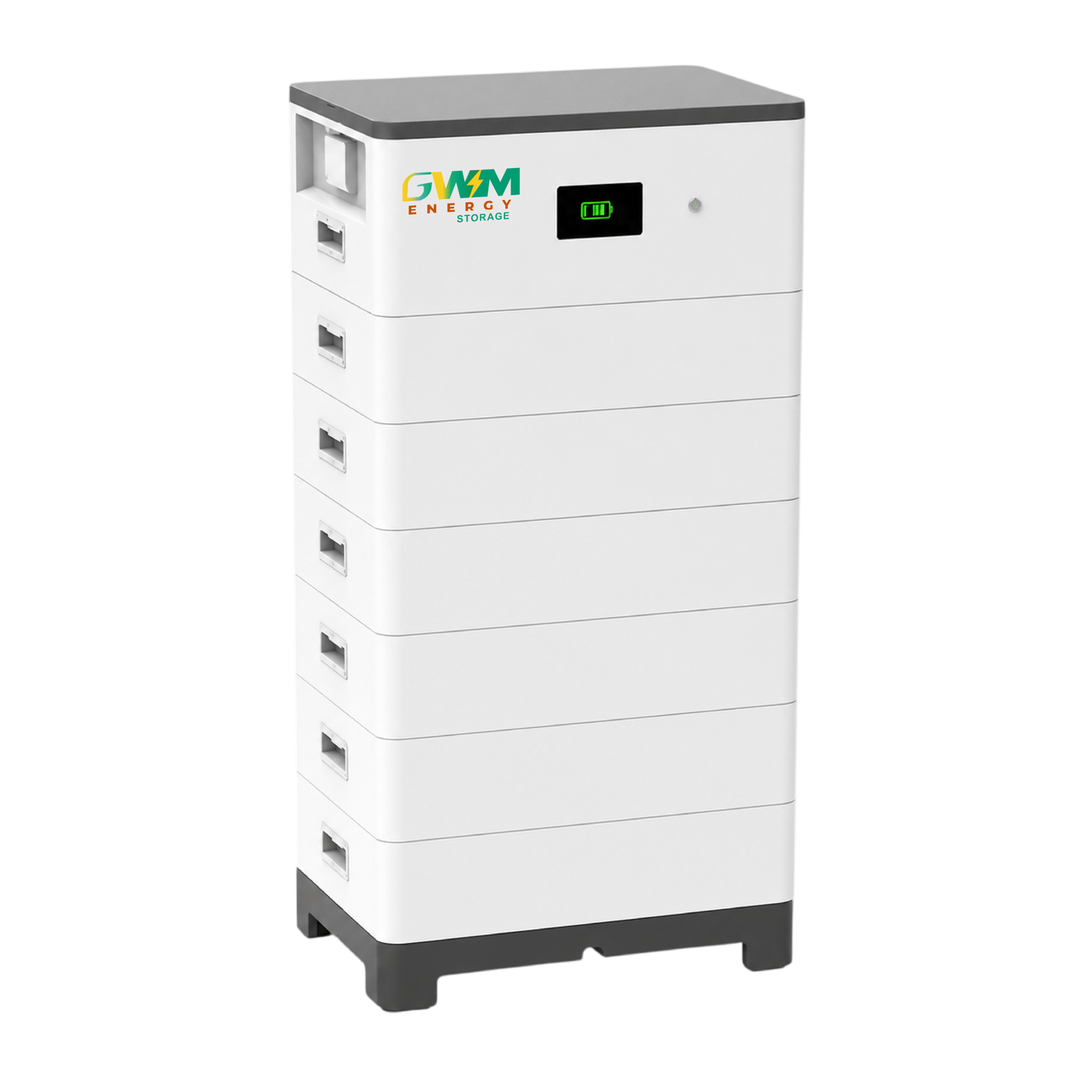

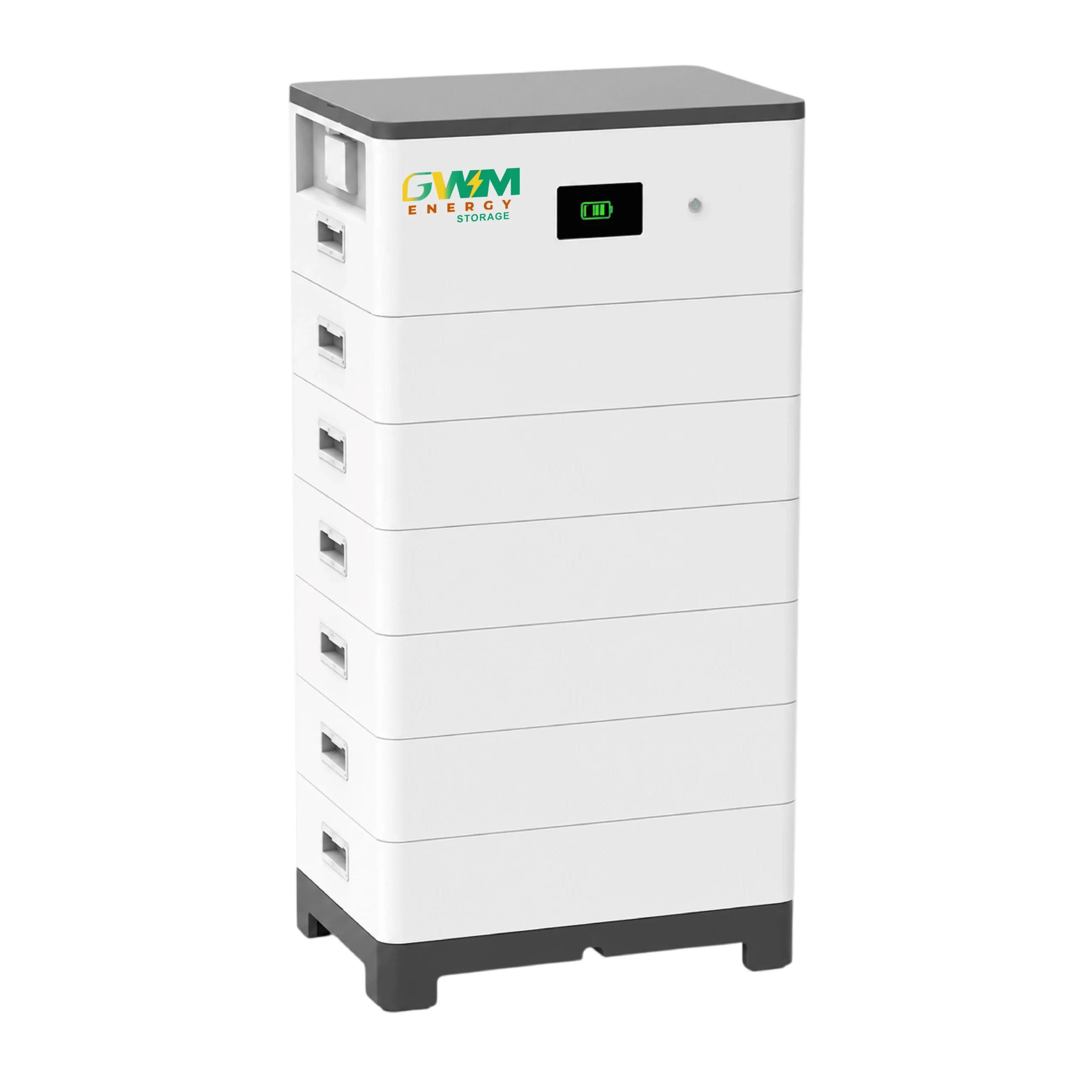

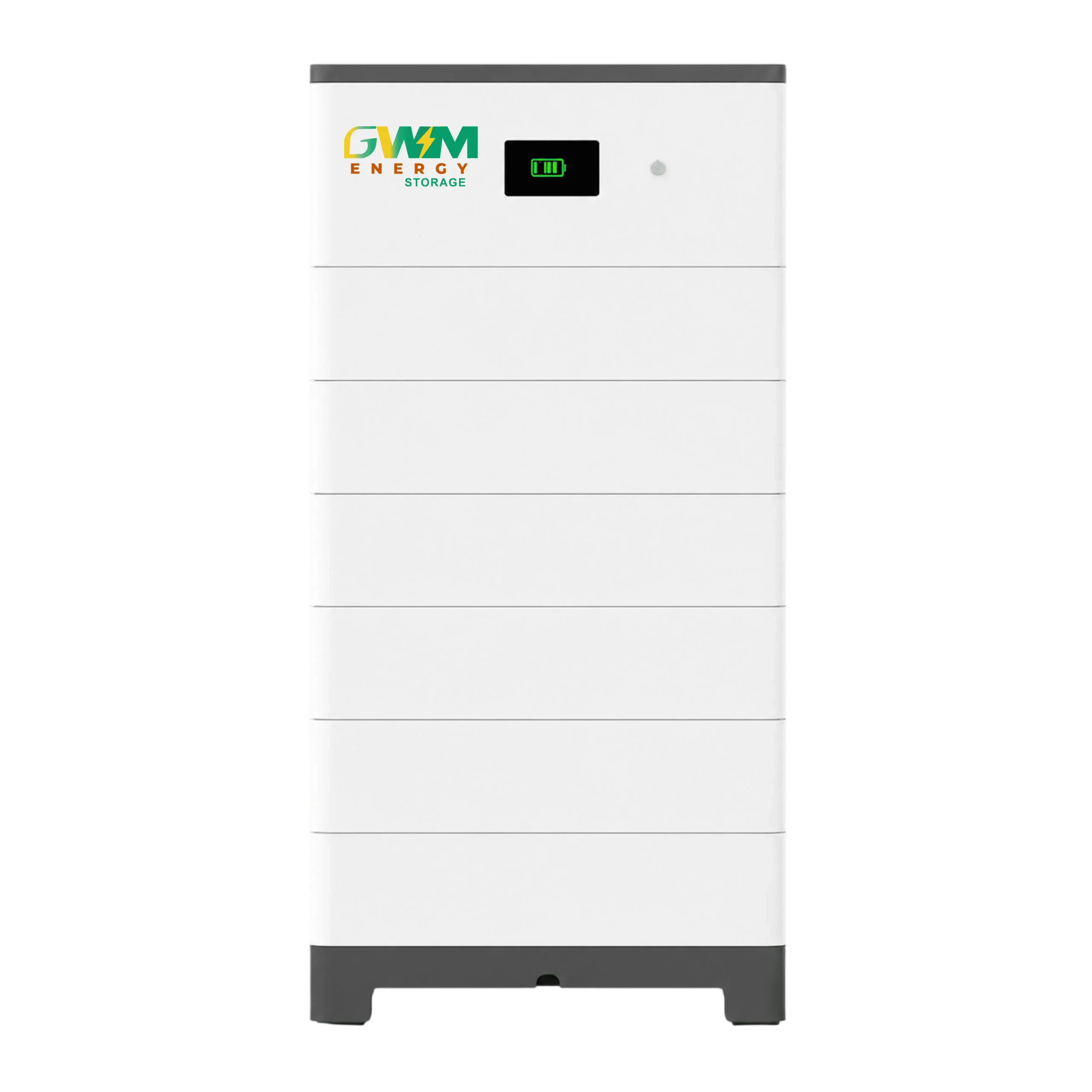

Hero series of High-voltage residential energy storage system is a modular high-voltage battery suitable for residential energy storage. The single cluster maximum supports 6 pieces of stacking, capacity support 7.6kWh~15.36kWh optional. The product supports up to 4 clusters in parallel and can be used with a three-phase hybrid inverter to solve the electricity needs of the entire house.
| Specification | 3-Modules | 4-Modules | 5-Modules | 6-Modules |
| Nominal Capacity (kWh) | 7.68 | 10.24 | 12.8 | 15.36 |
| Cell Matching | 48S1P | 64S1P | 80S1P | 96S1P |
| Working Voltage Range (V) | 136.8 – 172.8V | 182.4 – 230.4V | 228 – 288V | 273.6 – 345.6V |
| Weight (kg) | 115 | 145 | 175 | 205 |
| Nominal Voltage (V) | 153.6V | 204.8V | 256.0V | 307.2V |
| Dimension (W×D×H) | 550 × 430 × 697.5mm | 550 × 430 × 826.5mm | 550 × 430 × 955.5mm | 550 × 430 × 1084.5mm |
| Battery Type | LFP (LiFePO4) | |||
| Nominal Working Current | 50A | |||
| Communication Port | CAN / RS485 | |||
| Working Temperature Range | Charge: 0-45°C / Discharge: -10-50°C | |||
| Waterproof | IP55 | |||
| Installation Method | Floor-standing | |||
| Cycle Life | >6000 Cycles, 25°C / 77°F, 80% DOD | |||
| Peak Charge/Discharge Current (@25°C, 5S) | 63A | |||
| Discharge Rate of Module | ≤3.5% / Month @25°C | |||
| Module Series Connection | 3S ~ 6S | |||
| Parallel Connection | Up to 4 Units in Parallel | |||
